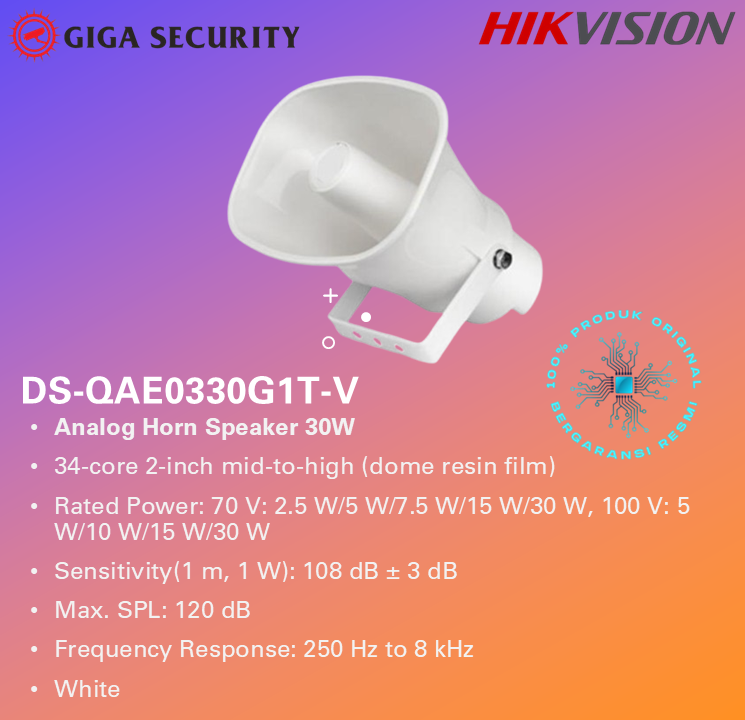

Analog Horn Speaker 30W
34-core 2-inch mid-to-high (dome resin film)
Rated Power: 70 V: 2.5 W/5 W/7.5 W/15 W/30 W, 100 V: 5 W/10 W/15 W/30 W
Sensitivity(1 m, 1 W): 108 dB ± 3 dB
Max. SPL: 120 dB
Frequency Response: 250 Hz to 8 kHz
White
Speaker
Rated Power
70V：2.5W/5W/7.5W/15W/30W； 100V: 5W/10W/15W/30W
Max. Acoustic Pressure
120 dBSPL
Sensitivity(1 m, 1 W)
108dB±3dB
Frequency Response
250 Hz-8 kHz
Speaker Unit
34-core 2-inch mid-to-high (dome resin film)
Coverage Angle
Horizontal: 75° Vertical: 90°
General
Material
ABS
Operating Temperature
-20 °C to 55 °C
Operating Humidity
＜90% (No condensation)
Dimension
240mm × 220 mm × 165 mm
Approx. 1.48 kg
Color
White
With Package Weight
Approx. 2.05 kg
Packing List
Instructions × 1 Regulatory Compliance and Safety Information × 1
Protection
IP65
