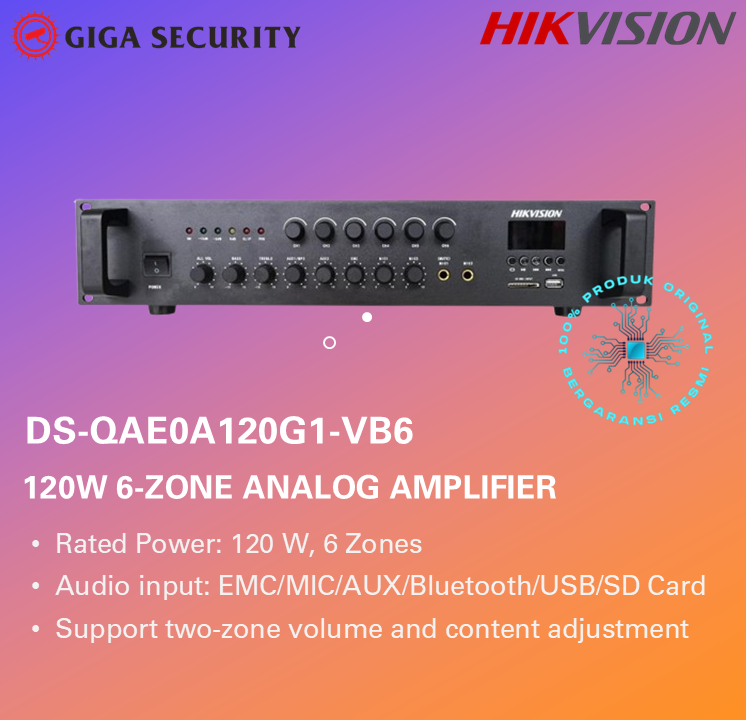

120W 6-Zone Analog Amplifier
Rated Power: 120 W, 6 Zones
Audio input: EMC/MIC/AUX/Bluetooth/USB/SD Card
Support two-zone volume and content adjustment
Audio
Rated Power
120W
Sensitivity
Line: -10dB EMC: -10dB MIC: -40dB line：0dB
Frequency Response
80Hz-18KHz（±3dB）
THD and SNR
THD≤0.5% SNR≥83dB
Interface
Audio In
EMC IN × 1, 6.5 mm Microphone × 2, AUX IN × 2, Bluetooth, USB2.0, SD card
Audio Out
Constant Voltage Output × 1，110 V COM, Constant Voltage Output × 1，70 V COM, Constant Impedance Output × 1，4~16Ω COM, Partition Output × 6，110 V COM, line out × 1,
Volume Knob
MIC Volume Knob × 2， Partition 1 Volume Knob × 6， All Volume Knob × 1， Bass Volume Knob × 1， Treble Volume Knob ×1， AUX1/MP3 Volume Knob ×1, AUX2 Volume Knob ×1, EMC Volume Knob ×1
USB
USB2.0
Power
200V-230V～, 50/60Hz 5A
Material
Iron
Dimension
484 × 88 × 360 mm
Approx. 9.2 kg (20.28 lb.)
Package Dimension
540 x 165 x 450 mm
With Package Weight
Approx. 9.5 Kg(20.94 lb.)
Color
Black
Packing List
One machine and one power cord
Operating Temperature
-10~+ 40°C ,（±2） 20%~80% relative humidity
Installation
Cabinet installation
Whole Device Dimension
484 x 88 x 395 mm (including handle)
